Alan M Benzie BA Arch (Hons), Dip Arch, Pg Dip
Architect
SWEETWATER - HOUSING ON THE QUEEN ELIZABETH OLYMPIC PARK
2014
Development within the Olympic Park is controlled by the London Legacy Development Corporation - their masterplan and design guidelines specify development programmes, infrastructure, materiality, building heights and volumes. Students were asked to design to these guidelines, creating housing on the former Olympic site which matches the given criteria, in order to meaningfully critique the masterplan. The development consists of an L shaped block containing 49 flats and duplexes, and 6 three-storey townhouses, arranged around a shared garden and adjacent to the Lea Navigation. Dwellings are designed to exceed the space requirements of the London Housing Design Guide by at least 25%. Construction is in-situ concrete, light steel frame and brick. Internal layouts are arranged to maximise light and to allow private outdoor space on balconies and terraces.THE CASS / UNIT 2 TUTOR - TONY FRETTON

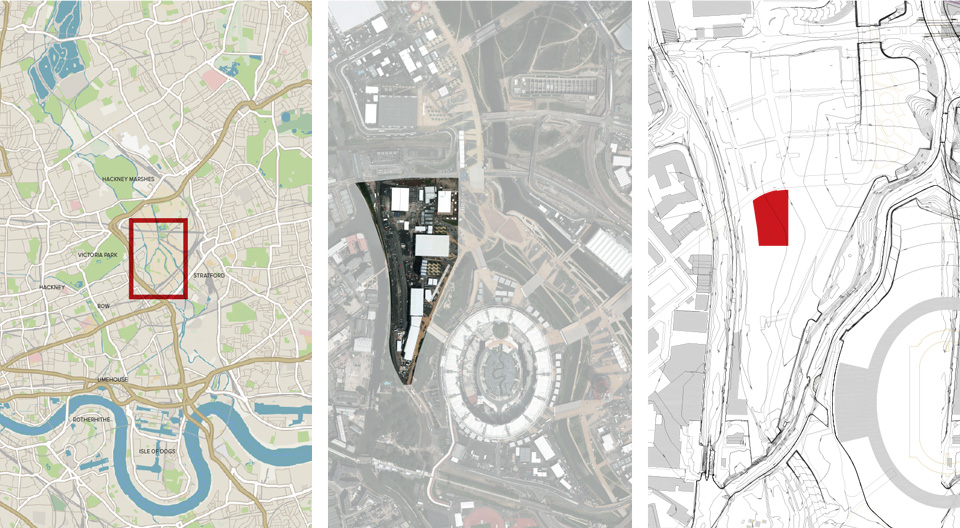

Queen Elizabeth Olympic Park - Planning Delivery Zone 4 [PDZ4]

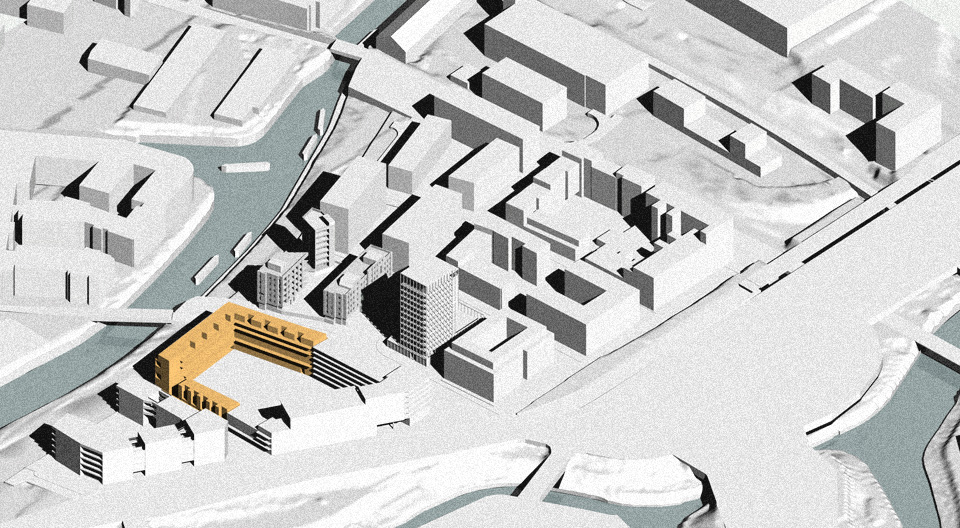

PDZ4 Site Ten in context with other proposed developments

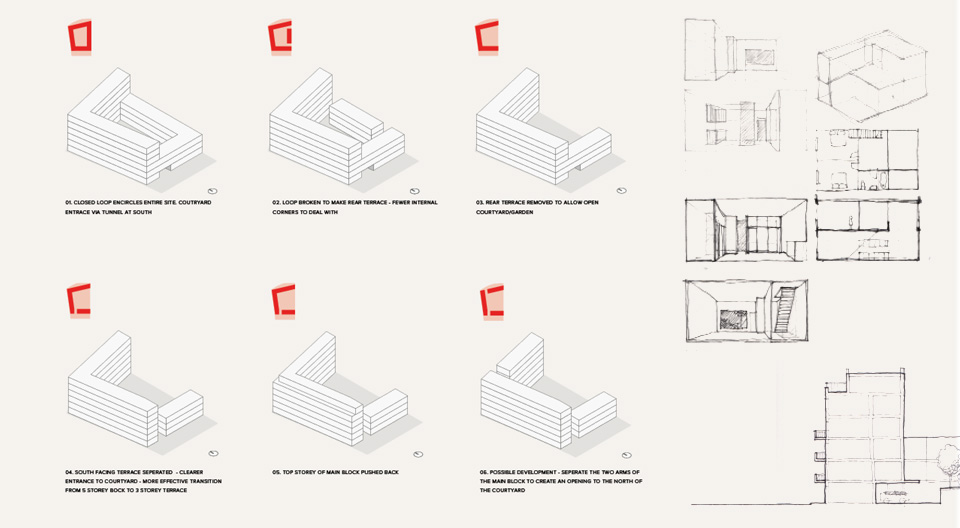

Iterative development of block footprint and massing

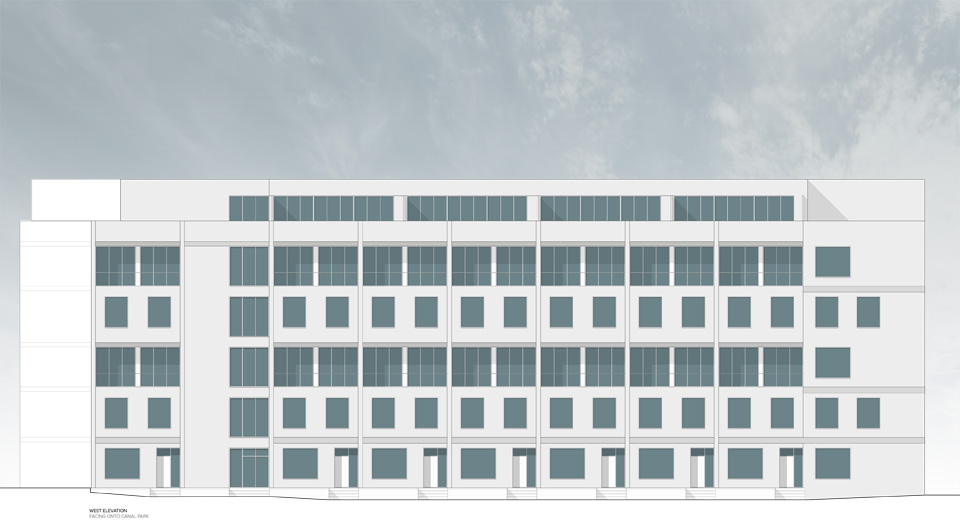

Sweetwater, block west elevation, facing the Lee Navigation and Fish Island

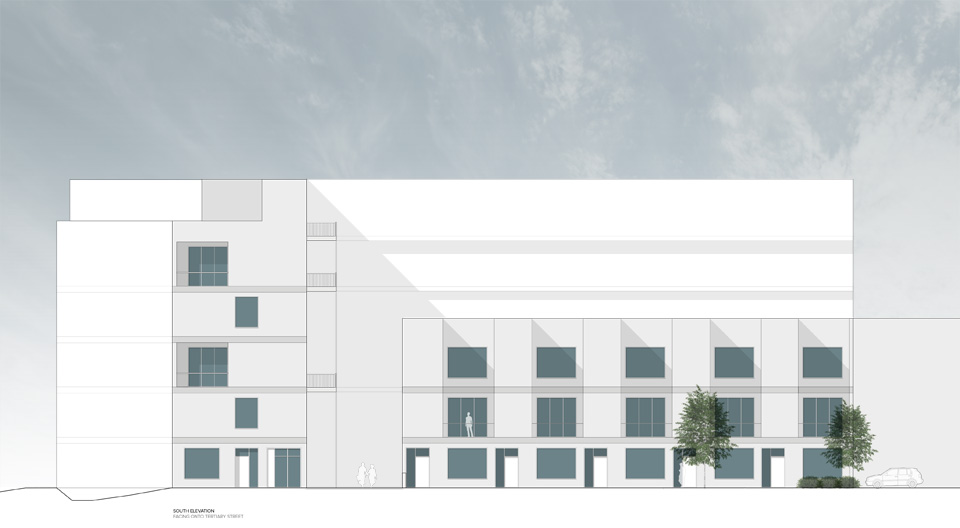

Sweetwater, block and terrace south elevation, facing onto newly constructed access street

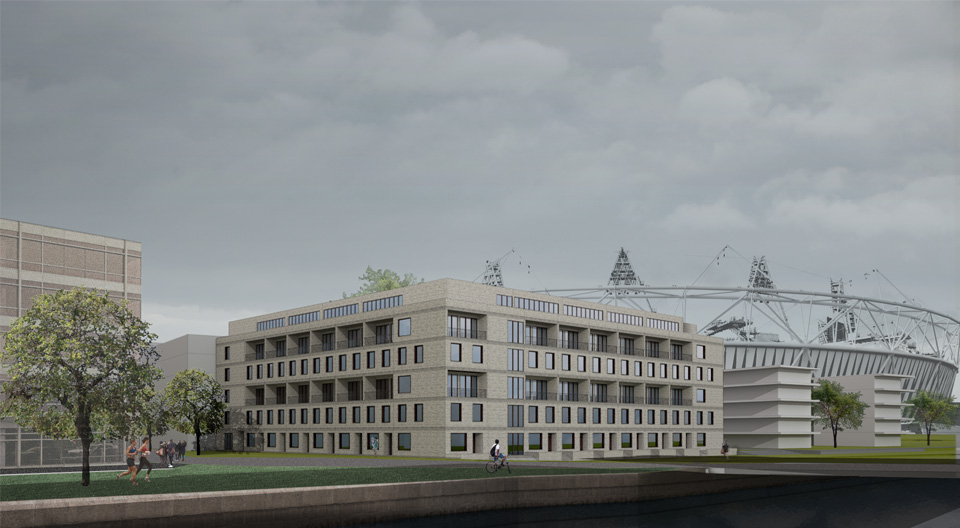

Sweetwater, view of block from north west, on Fish Island/Hackney Wick

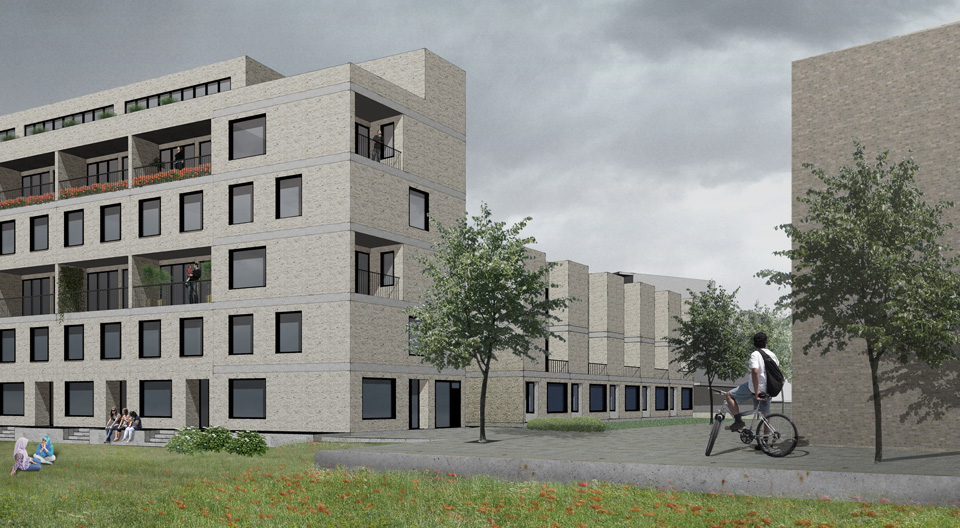

Sweetwater, view of block and terrace from south, on the canal path

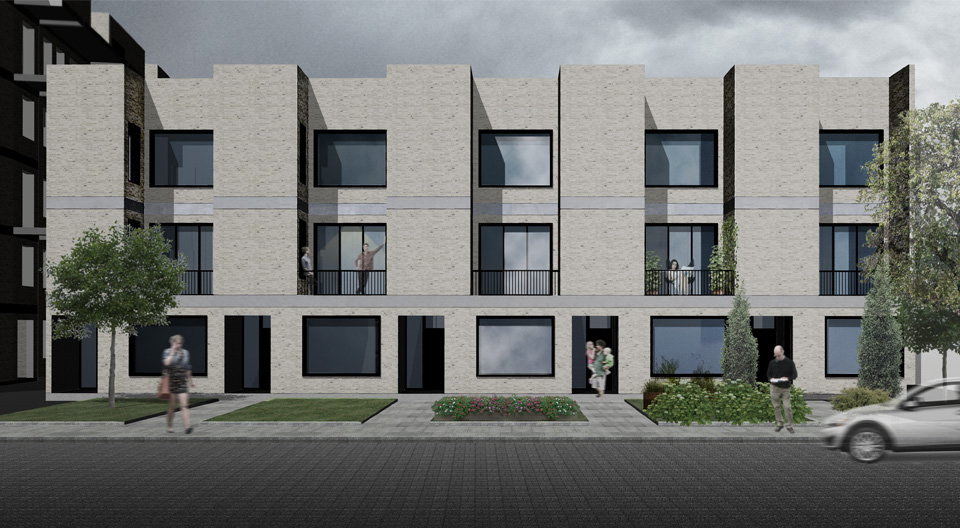

Sweetwater, view of terraced town houses from the street
